How It Works
1
Video Sources
Anything with an HDMI output — or a video URL — can feed DisplayHUB. Satellite receivers, over-the-air tuners, streaming boxes, game consoles, PCs, and IP video streams.
DirecTV
HDHomeRun Antenna
Streaming Box
Game Console
Any HDMI Device
Video URL / IP Stream
2
Raspberry Pi Encoders
One Raspberry Pi per HDMI source captures and encodes it into a low-latency network stream — off-the-shelf hardware you can buy anywhere and repurpose if needed. Add more inputs any time by adding another Pi.
3
Your Existing Network
Streams travel over your router — no new cable runs to every TV. Ethernet gives the best stability and lowest latency; WiFi works well too on a solid network.
4
Pi Controller & Web Dashboard
A dedicated Pi runs DisplayHUB — automatically discovers encoders and displays, no manual IP config. From any browser: route sources to screens, manage overlays, view EPG via XMLTvListings.com, fire IR blasters, and toggle smart power plugs for signs, lights, or any AV equipment.
5
Smart Displays — No Set-Top Boxes Needed
Displays run a native DisplayHUB app — no extra hardware boxes required. Supply loaner Android tablets so customers can watch their specific game at the table with headphones.
RokuRoku
AndroidAndroid TV & Tablets
Fire TVFire TV
SamsungSamsung Tizen
WebOSLG WebOS
No more remotes
No More Remotes!

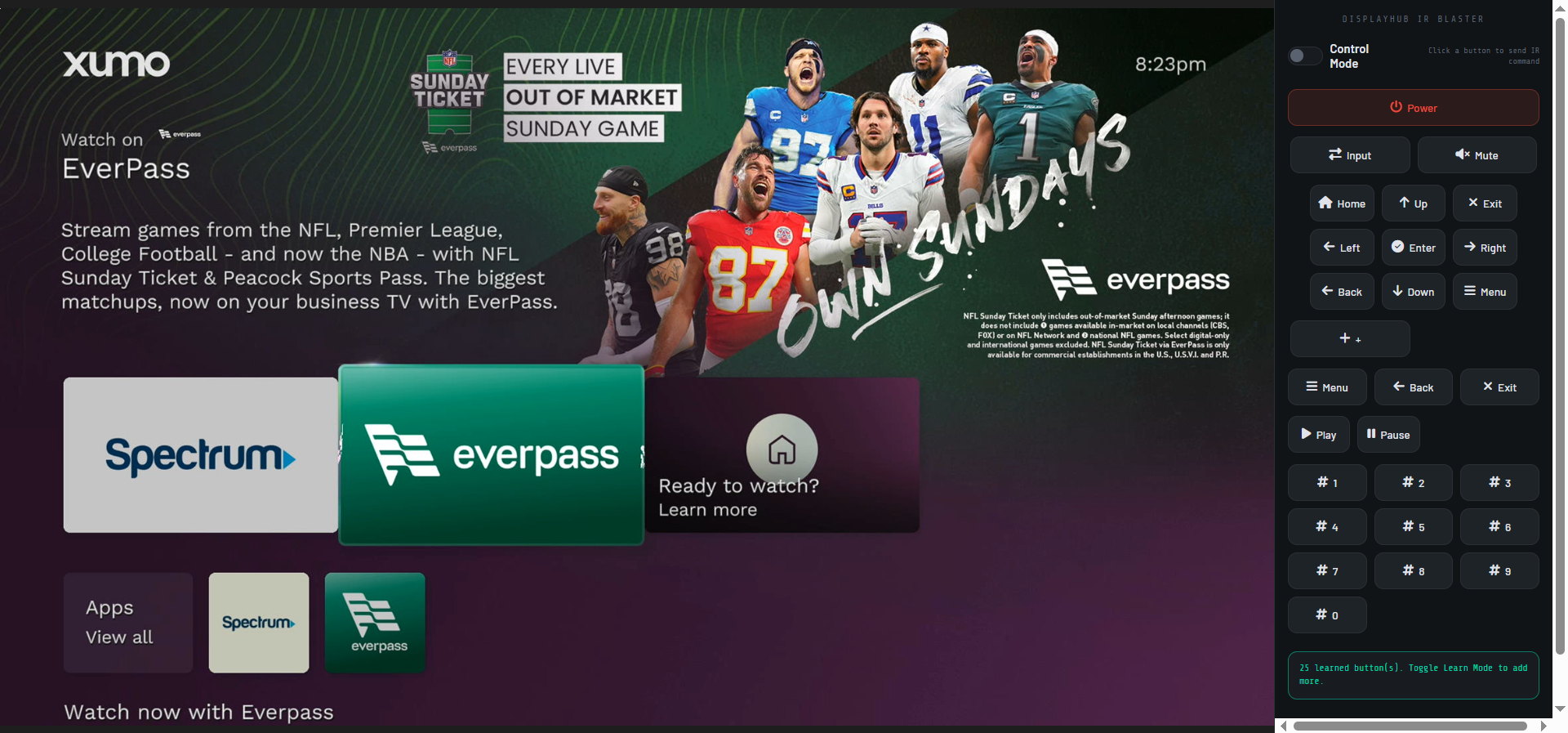

Control every TV from your phone — no more hunting for remotes, wrestling with aim, or juggling a box full of them.
Why DisplayHUB?
Fraction of the cost of a traditional HDMI matrix switcher
Self-install with web GUI & automatic device discovery
Infinitely scalable — add a Pi, instantly gain an input or output
Local-first — keeps running even when internet goes down
Overlays, EPG, power plugs & IR control all built in
Works with existing TVs — Roku, Android, Fire TV, Samsung, LG
Free consulting — even if you choose a different system
Affordable Hardware — use affordable off-the-shelf devices instead of proprietary endpoints
More than displays — automate signs, lights, jukeboxes, HVAC triggers, and other venue devices
Ultra-low latency — built for real-time distribution across your local network
Start small, grow anytime — deploy one stream or expand to full-property coverage without replacing the system
Total screen control
System Architecture
displayhub.us
Signal Flow Diagram
SOURCES Pi ENCODERS NETWORK DISPLAYS CONTROL DIRECTV Satellite Receiver ANTENNA HDHomeRun Tuner STREAMING BOX HDMI Output VIDEO URL IP Stream / URL ANY HDMI Game Console / PC Pi ENCODER HDMI → Stream Pi ENCODER HDMI → Stream Pi ENCODER HDMI → Stream URL INGEST URL → Stream Pi ENCODER HDMI → Stream YOUR NETWORK Router / Ethernet Switches Pi CONTROLLER DisplayHUB Software Web GUI + Auto-Discovery ROKU TV Roku App ANDROID TV TV • Tablet • Projector • Dongle FIRE TV Sticks & Smart TVs SAMSUNG TIZEN Tizen App LG WEBOS WebOS App DASHBOARD Phone • Tablet • PC IR BLASTERS Control source devices remotely — opt. $119 POWER PLUGS Control any device: signs, lights, AV equipment KEY HDMI connection (source device to encoder) Network stream (Ethernet or WiFi) Stream to display (decoded by app) Control / management (web GUI over network) Ethernet Recommended Ethernet gives the best stability & latency. WiFi works well on a solid network too. Roku: 1–5 sec glass-to-glass. Android / others: under 1 sec.
Features & Getting Started
displayhub.us
// vs Traditional Systems
DisplayHUB vs
The Old Way
Traditional AVDisplayHUB
$10,000+ HDMI matrix switcher💰Off-the-shelf Raspberry Pis
Proprietary hardware, hard to replace📦Common parts — easy to repurpose
Expensive AV installer required🛠Self-install or on-site help available
Long HDMI cable runs to every display🔌Streams over your existing network
Basic front-panel control only📱Full mobile web dashboard
No overlays or digital signage🎨Overlays, ads, alerts & signage
Scaling is expensive and disruptiveAdd a Pi — instant new input or output
No power managementSmart plug control for any device
No customer-facing display option🍺Loaner tablets at table for customers
Goes down if internet fails🔒Local-first — runs without internet
// Capabilities
Key Features
🖥️
Live OverlaysText, logos, animated overlays, ads & alerts injected into the video feed
📱
Web GUI DashboardBrowser-based — route any source to any screen from phone, tablet or PC
🔍
Auto Device DiscoveryEncoders and displays found automatically — no manual IP setup
Smart Plug ControlControl signs, lights, AV equipment — anything plugged in
📺
Program Guide (EPG)Guide data via XMLTvListings.com for DirecTV, HDHomeRun & IP channels
🔒
Local-FirstRuns on your own network — internet outage won’t bring the system down
📡
IR Remote ControlOptional IR blasters control satellite boxes from the dashboard ($119 each)
🎵
RequestSongs.coCompanion DJ/KJ song request & queue app — separate product
// Supported Platforms
Works On Every
Screen Type
Roku
Roku TVs & SticksRoku app store
Android
Android TV / Google TVGoogle Play · phones, tablets & projectors
Fire TV
Amazon Fire TVFire TV sticks & Fire smart TVs
Samsung Tizen
Samsung TizenTizen app store
LG WebOS
LG WebOSWebOS app store
🍺 Venue Tips
Supply loaner Android tablets so customers can watch their game at the table with headphones — no app install required.
Use cheap portable Android projectors for extra or outdoor screens — any outlet, any WiFi.
Use the overlay system to show daily specials, events, or drink promos on top of live TV.
Use smart plug control to power down all bar signs at closing time with a single tap.
// Getting Started
Three Ways
to Get Running
📦 System in a Box

Order pre-configured hardware bundles from the DisplayHUB shop — arrive ready to plug in and go.

🏢 On-Site Installation

Professional installation by the DisplayHUB team or a local network installer. Free network design consultation included.

💰 Simple, Honest Pricing

Free tier — full software with DisplayHUB watermark on streams
Paid tier — small per-display/month fee, no watermark, all features
Free consulting — even if you choose another system

🎵 Also Offer: RequestSongs.co

Companion DJ & KJ product for live song requests, queue management & crowd interaction. Separate product that pairs perfectly with DisplayHUB venues.
